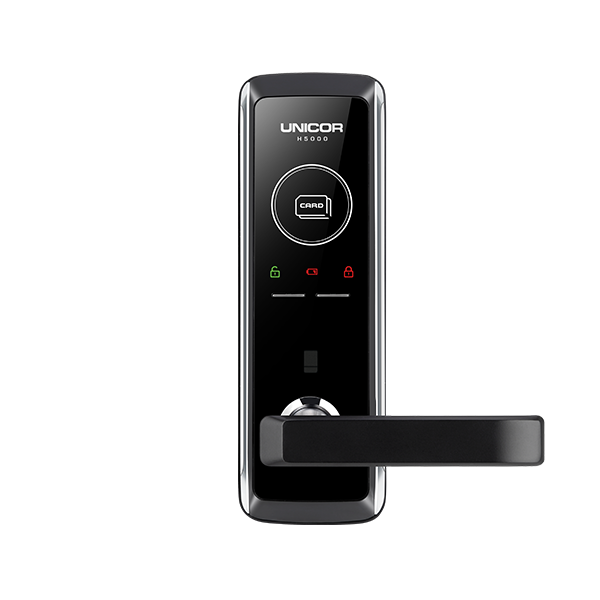

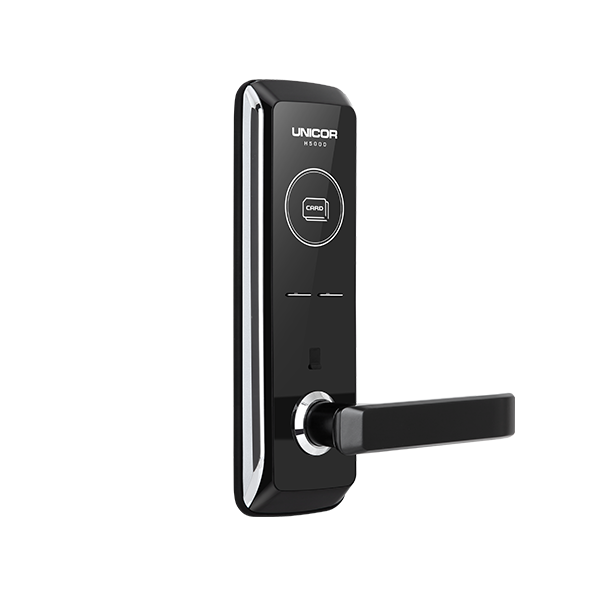

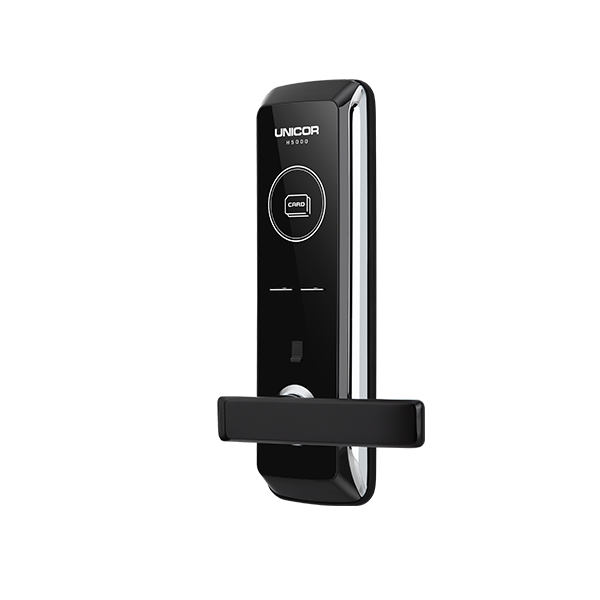

Mortise Lock
H5000
Hotels/Condominium with easy installation and smart design
| Opening Method | 2-WAY (Smart Key, Mechanical Key) |
|---|---|
| Color |
|
| Type | Specification | Dimension and Detailed spec. |
|---|---|---|
| Installation Environment | General Fire Door | Door thickness 40mm ~50mm |
| Type of product | D-NF-T-K-M | DC-Nonfire Resistant-Temperature Sensor-Key-Main Rudder |
| Product size | Outer Body | 78(W) X 225(H) X 34(D)mm |

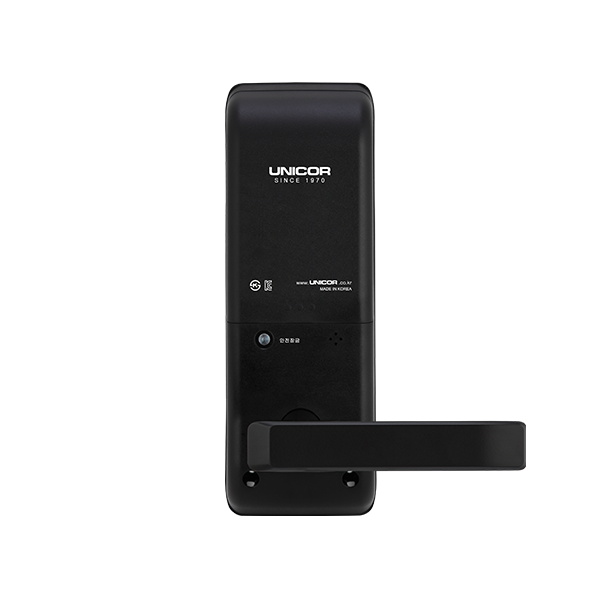

| Inner Body | 75(W) X 229(H) X 19(D)mm | |
| Material | Outer Body | PC, ABS |
| Inner Body | PC | |
| Components | Basic Components | - |
| Optional | - | |
| Battery | DC 6V | 1.5V LR6 AA Alkaline Battery 4pcs |
| Emergency Power | DC 9V | Alkaline Battery(sold separately) |
| User Manual | H5000 Manual EN.pdf | 2020.05.29 |  |
|---|
